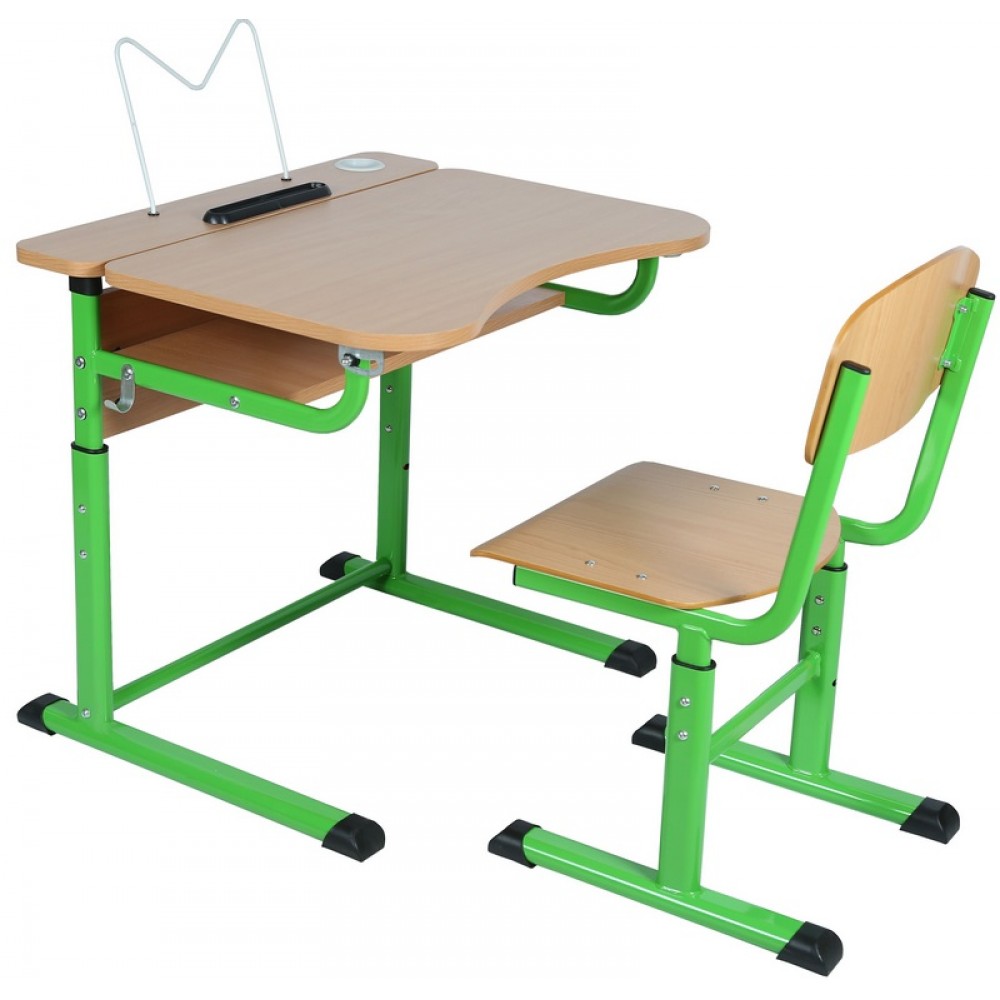

Single student set with a platform and tilt adjustment of the table top and shelf №4-7 + T-shaped chair on a flat-oval pipe №4-7 with HPL coating (31938+32450HPL)

Set 1-seat student table with shelf, with adjustable table top angle, for height groups № 4-7 + T-like chair, height-adjustable № 4-7 with HPL coating
Overall dimensions of the table: 700x590x640-760 (820) mm.
Weight: 13.5 kg.

• width - 700 mm.
• depth - 590 mm.
• height - 640, 700, 760, 820 mm
• tabletop tilt angles - 0°, 3°, 5°, 7°, 9°, 12°, 14°, 16 °.

The table consists of an ergonomically shaped table top and a metal frame. All tabletop corners are rounded. The table top consists of two parts. That part of the table top, which is located on the side of the person sitting, is at an angle, the other part of the table top is constantly in a horizontal position. The tilt angle of the tabletop is adjusted by means of a height mat type mechanism with an adjustment step of up to 3°, with the obligatory presence of limiters for the safety of use by students. On the lower part of the frame there is a hole in the form of a circle through which the marking of the growth groups is visible when the table height is adjusted. Color marking in accordance with the height groups is applied in the form of a circle of at least 10x15 mm on the right stand of the metal frame from the side of the student. Hooks for knapsacks and briefcases are fixed on both sides. The frame of the table is collapsible, made of a steel flat-oval pipe 50x30 mm, 38x20 mm, 30x15 mm and a lintel d25 mm. The thickness of the frame pipes is 1.2 mm. On the horizontal part of the tabletop on the right side of the workplace there is a hole for a glass with stationery, in the central part - a pencil case for accessories, holes for a bookend. Adjustment is carried out by means of a through screw-nut tie with fixation of the cap nut in the middle of the pipe to prevent unscrewing during loosening. Wooden elements, depending on color combinations, are made of chipboard with a thickness of 16 mm or 18 mm, and are finished with a PVC edge 1 mm thick (table top, platform) and a screen and shelf from 0.5 mm. The frame has a protective decorative coating - powder enamel. The holes are protected by plastic bushings that protect against dirt and moisture. The product is completed with fastening screws of a semicircular safety form. In the color combination Yellow/Lime - WORKTOP and SHELF 18 mm thick in Lime, SCREEN 16 mm thick in Yellow. In the color combination Sakura/Lavender - WORKTOP and SHELF 18 mm thick in Lavender, SCREEN 16 mm thick in Sakura. In the color combination Beech - WORKTOP 18 mm thick, SHELF and SCREEN 16 mm thick. In the color combination Milk Oak - WORKTOP, SHELF and SCREEN 18 mm thick. In Jasmine color combination - WORKTOP, SHELF and SCREEN 18 mm thick.
Frame color: light green (RAL6018), gray (RAL7035), yellow (RAL1018).
Particleboard color: beech, yellow/lime, sakura/lavender, jasmine, milk oak. Overall dimensions of the chair: 391x441x740-860 mm.
Backrest size: 380x200 mm. Seat size: 380x350 mm.
Weight: 4.57 kg. The chair student is intended for the equipment of educational rooms of educational institutions. The chair can be adjusted in height:

• 380 mm (№ 4) - for students from 1450 mm to 1600 mm;
• 420 mm (№ 5) - for students from 1600 mm to 1750 mm;
• 460 mm (№ 6) - for students with a height of 1750 mm;
• 500 mm (№ 7) - for students with a height of more than 1850 mm.

The chair consists of a padded seat, backrest and metal frame.

• width - 391 mm;
• depth - 441 mm;
• height - 740, 780, 820, 860 mm;
• height up to upper base of the seat - 380, 420, 460, 500 mm.
• seat - 380x350 mm.
• back - 380x200 mm.

The seat and back are made of bent plywood (8-9 mm thick) and covered with HPL plastic 0.4-0.5 mm thick. The corners of the seat and backrest and the front edge of the seat have a radius of curvature to avoid injury. The frame of the chair is made of a flat-oval pipe 30x15x1.2 mm, 38x20x1.2 mm and 50x30x1.2 with powder coating. The back and seat are attached to the frame with screws. Adjustment is carried out by means of a through nut-screw tie with fixation of the cap nut in the middle of the pipe to prevent unscrewing during loosening. On the lower part of the frame there is a hole in the form of a circle, through which the marking of height groups is visible when adjusting the height on the right stand from the side of the student. Plastic tips are fixed at the ends of the frame, which prevent injury to students and damage to the floor.
Frame color: light green (RAL6018), gray (RAL7035) or yellow (RAL1018).
HPL color: jasmine, beech, milky oak, blue.
Possible frame and HPL color combinations:- yellow frame - HPL beech, milky oak, jasmine, blue;- gray frame - HPL beech, milky oak;- light green frame - HPL beech, oak lactic. The price does not include a stand for books and a cup. A bookcase and a cup can be purchased separately.
